Windows Architecture

Do you really need to know this thing? Absolutely not. But I guess it helps to know more about how this thing works!

Boot Process

1. Startup
2. BIOS — Power On Self Test (POST)
3. Operating System
4. System Configuration
5. System Utilities
6. User Authentication

Whats under the trunk?

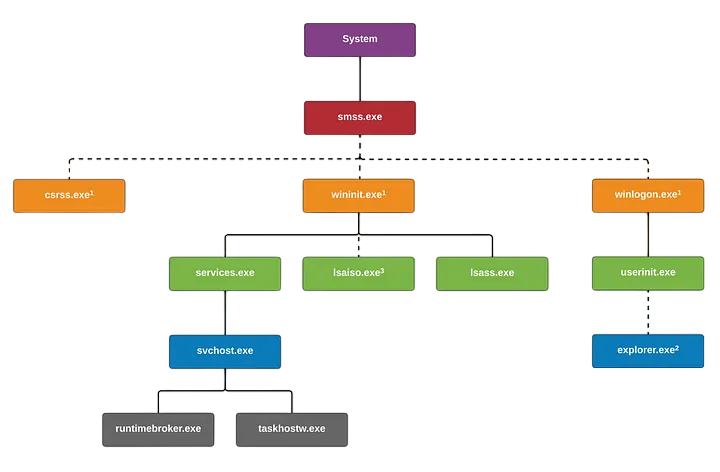

In a Windows environment, here’s the normal sequence:

1. System - one who wakes up smss.exe.
2. smss.exe (Session Manager Subsystem or Windows Session Manager) - %SystemRoot%\System32\smss.exe - Responsible for creating and managing sessions.
3. csrss.exe (Client/Server Run-Time Subsystem) - %SystemRoot%\System32\csrss.exe - Responsible for creating and deleting processes and threads, temp files, etc.
4. wininit.exe (Windows Initialization Process) - %SystemRoot%\System32\wininit.exe - Responsible initializing program tasks in user-mode.
5. winlogon.exe (Windows Logon Process) - %SystemRoot%\System32\winlogon.exe - Responsible for user logon/logoffs on windows.
6. lsass.exe (Local Security Authority SubSystem) - %SystemRoot%\System32\lsass.exe - Responsible for enforcing local security policy on a windows system.
7. services.exe (Service Control Manager) - %SystemRoot%\System32\services.exe - Responsible for starting and stopping services.
8. userinit.exe (User Initilization process) - %SystemRoot%\System32\userinit.exe - Responsible for user environment initialization including execution of GPOs (Group Policy Objects) and logon scripts that may be set in an organization setting.
9. svchost.exe (Service Host Process) - %SystemRoot%\System32\svchost.exe - Responsible for launching and hosting multiple DLL services i.e. it allows windows to group similar services together.
10. taskhostw.exe (Host Process for Windows Tasks) - %SystemRoot%\System32\taskhostw.exe - Responsible for hosting processes that run DLLs.
11. explorer.exe (Windows Explorer) - %SystemRoot%\Explorer.exe - Responsible for launching and managing windows Graphical User Interface (GUI) from the start menu to the taskbar to the file explorer and the files stored, and other stuff.

Note: Everything above is being created by NT Authority or a “higher being” in Windows OS. If you see that some other process were being created aside from the listed above. Something’s going on.

Common artifacts in Windows environment

• NTFS (New Technology File System)

  • (C:\$MFT) - Master File Table - Stores records of every file and directory.
  • (C:\$LogFile) - Tracks MFT metadata changes
  • (C:\$Extend$UsnJrnl:$J) (Alternate Data Stream) - Tracks file changes

• Windows Registry

  • System-specific Hives
    • HKLM\SAM (%SystemRoot%\System32\config\SAM)
    • HKLM\SECURITY (%SystemRoot%\System32\config\SECURITY)
    • HKLM\SOFTWARE (%SystemRoot%\System32\config\SOFTWARE)
    • HKLM\SYSTEM (%SystemRoot%\System32\config\SYSTEM)
  • User-specific Hives
    • HKEY_USERS<SID>\NTUSER.DAT (%UserProfile%\NTUSER.DAT)
    • USERCLASS.DAT (%UserProfile%\AppData\Local\Microsoft\Windows\UsrClass.dat)

• Windows Event logs

  • System (%SystemRoot%\System32\winevt\Logs\System.evtx)
  • Security (%SystemRoot%\System32\winevt\Logs\Security.evtx)
  • Application (%SystemRoot%\System32\winevt\Logs\Application.evtx)
  • Terminal Services Logs for RDP (%SystemRoot%\System32\winevt\Logs\TerminalServices-LocalSessionManager%4Operational.evtx)

• Other artifacts

  • Executions
    • Background Activity Moderator (BAM)
      • %SystemRoot%\CurrentControlSet\Services\bam\UserSettings{SID}
    • AmCache
      • %SystemRoot%\AppCompat\Programs\Amcache.hve
    • Windows Prefetch
      • %SystemRoot%\Prefetch
    • Shortcut (LNK) Files
      • %USERPROFILE%\AppData\Roaming\Microsoft\Windows\Office\Recent\
  • Persistence
    • Auto-Run key
      • HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Run
      • HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\RunOnce
    • Startup Folders
      • %AppData%\Microsoft\Windows\Start Menu\Programs\Startup (User-specific)
      • %ProgramData%\Microsoft\Windows\Start Menu\Programs\Startup (System-wide)
    • Windows Services -%SystemRoot%\ControlSet00#\Service
    • Tasks
      • %SystemRoot%\System32\Tasks
      • SOFTWARE\Microsoft\Windows NT\CurrentVersion\Schedule\TaskCache\Tasks
  • Browser History
    • Internet Explorer (%UserProfile%\AppData\Local\Microsoft\Windows\History)
    • Google Chrome (%UserProfile%\AppData\Local\Google\Chrome\User Data\Default\History)
    • Mozilla Firefox (%AppData%\Mozilla\Firefox\Profiles<ProfileName>\places.sqlite)
  • RecycleBin (%UserProfile%\Recycle Bin)

This post is more like a cheat sheet. Will flesh it out in the upcoming posts!
